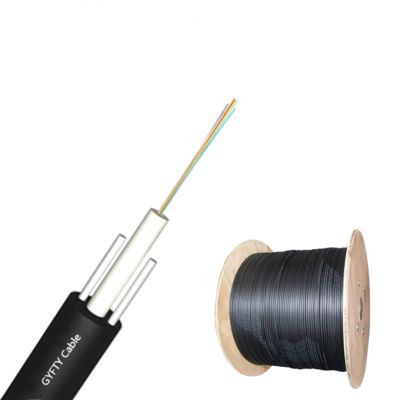

GYFXTY 12Core Outdoor FTTH Ground Drop Cable Central Loose Tube All-Dielectric Fiber Optic Cable
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | Ebocom |
| Certificación | ISO |
| Número de modelo | Gyfxty |
| Cantidad de orden mínima | 2000m |
| Precio | 0.02 USD per Meter |
| Detalles de empaquetado | Tambor de madera contrachapada o personalizado |
| Tiempo de entrega | 3-10 días |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 100 km por día |
Póngase en contacto conmigo para muestras y cupones gratis.
¿Qué es?:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Resistencia a la tracción | 1KN 1,5KN 2KN 3KN | Tipo de fibra | Modo único |
|---|---|---|---|
| FRP | 0.5-2.8 mm | Longitud del cable | 1km 2km |
| Nombre del modelo | cable de bajada | Material de vaina exterior | PE/LSZH |
| Color de cable | Negro | ||
| Resaltar | 12Core FTTH outdoor drop cable,all-dielectric fiber optic cable,loose tube FTTH ground cable |
||
Descripción de producto
Product Overview

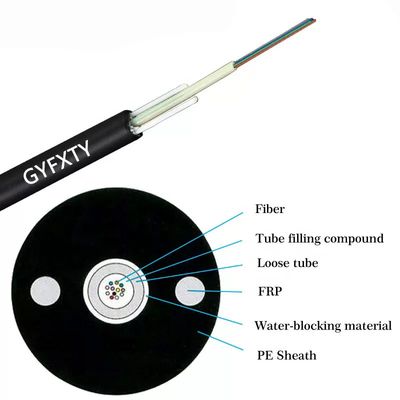

The Ebocom GYFXTY Outdoor Fiber Optic Cable is a central loose tube, all-dielectric cable engineered for FTTH, FTTx access networks, and rural broadband projects. Designed with a single gel-filled loose tube, it protects the fibers from moisture and mechanical stress, ensuring low attenuation and high transmission stability.
Two parallel FRP (Fiber Reinforced Plastic) rods act as the primary strength members, delivering excellent tensile resistance without any metallic components—ideal for areas with lightning exposure or strong electromagnetic interference. Known in many regions as Ground Drop Cable, this lightweight yet rugged cable is easy to install.
Main Advantages
-
All-Dielectric Construction – No metal, safe for use near power lines or high-voltage areas
-
Central Loose Tube Design – Gel-filled tube for superior moisture protection
-
Dual FRP Strength Members – High tensile performance and long-term durability
-
Flexible Deployment – Suitable for aerial pole spans, underground ducts, and FTTH drop installations
-
Custom Options – Available with G652D, G657A1, or G657A2 single-mode fibers; OEM printing and jacket color available
Typical Applications
-
Fiber to the Home (FTTH) & FTTx Networks
-
Urban and Rural Broadband Expansion
-
Backbone and Distribution Networks
-
Aerial Pole-to-Pole or Duct Installations
-
Electromagnetically Sensitive Areas (railways, substations, industrial plants)
Technical Data
| Parameter | Details |
|---|---|
| Fiber Type | Single-mode G652D / G657A1 / G657A2 (Multimode optional) |
| Fiber Count | 2–24 cores |
| Cable Structure | Central loose tube with water-blocking gel |
| Strength Members | Two parallel FRP (Fiber Reinforced Plastic) rods |
| Outer Jacket | UV-resistant PE or LSZH |
| Nominal Outer Diameter | 5–10 mm (customizable) |
| Installation Methods | Aerial, duct, ground drop |
| Temperature Range | -40°C to +70°C |
| Standards Compliance | ITU-T G.652/G.657, IEC 60794, ISO9001 |
