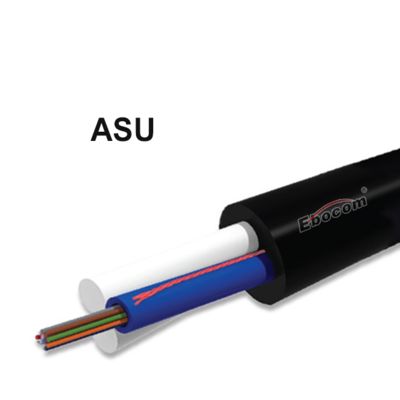

ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable

  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
  • ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable
Lugar de origen PORCELANA
Nombre de la marca Ebocom
Certificación ISO
Número de modelo ASU
Cantidad de orden mínima 100 piezas
Precio USD 0.08~0.1, Meter
Detalles de empaquetado Bolsa, cartón o personalizado
Tiempo de entrega 7-10 días
Condiciones de pago T/T, L/C, Western Union, Moneygram
Capacidad de la fuente 80 Km por día

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es?:0086 18588475571

El Wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Chaqueta Sola chaqueta Nombre del artículo Cables para el sistema ADSS MINI
Longitud del cable personalizable Tipo de fibra En modo solo
Miembro de la fuerza FRP Esperanza de vida Más de 30 años
Paquete 3km/4km/5km por tambor Modelo de fibra G.652 o a su solicitud
Longitud del paquete 2KM/3KM/5KM o según su solicitud Estructura de cables Sin armadura Uni-Loose Tube
Resaltar

ASU FRP strength tube drop cable

,

HDPE drop cable for fiber optic

,

self-supporting ADSS fiber optic cable
Deja un mensaje
Descripción de producto

Product Overview

Ebocom’s ASU Mini ADSS Fiber Optic Cable, also known as Mini ADSS Cable, is designed for aerial installations in FTTH networks, power line communication, and outdoor telecom projects.

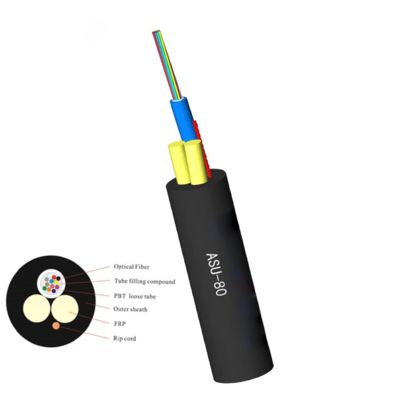

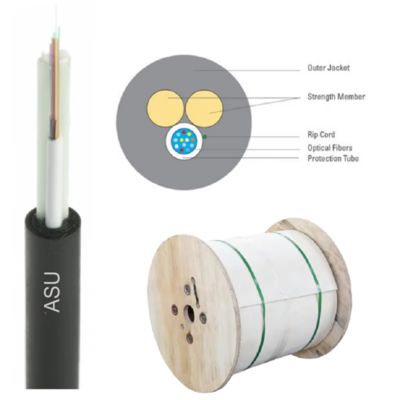

This compact cable features two parallel FRP (Fiber Reinforced Plastic) strength members and one central loose tube containing single-mode or multimode fibers.
The outer diameter can be customized to meet specific project requirements, ensuring a perfect fit for different spans and environmental conditions.
With its all-dielectric self-supporting design, the ASU Mini ADSS cable delivers excellent tensile strength, lightweight construction, and reliable long-distance signal transmission without the need for grounding or metallic support.

Key Features

  • Compact Mini ADSS Structure: Two FRP strength members + one central loose tube for superior mechanical strength and flexibility.

  • Custom Outer Diameter: Tailored to customer specifications for various aerial spans and installations.

  • All-Dielectric Design: No metallic components, safe for high-voltage environments, no grounding required.

  • Durable Jacket: UV-resistant, waterproof, and weatherproof sheath for long-term outdoor use.

  • High Performance: Low attenuation and stable optical transmission over long distances.

  • Wide Application: Ideal for FTTH deployment, pole-to-pole aerial wiring, power line communication, and rural broadband networks.

Typical Applications

  • FTTH and FTTx broadband networks

  • Power line communication and distribution networks

  • Rural and urban aerial fiber deployments

  • Pole-to-pole telecom projects

  • Industrial parks and smart grid communication

Technical Specifications

Item Specification
Fiber Type Single-mode G.652D / G.657A1 / G.657A2 (customizable)
Core Count 2–24 fibers (as required)
Structure Two parallel FRP strength members + central loose tube
Outer Diameter Customizable according to span and project needs
Strength Member FRP (Fiber Reinforced Plastic), high tensile strength
Jacket Material UV-resistant PE / LSZH (optional)
Installation Span Typically up to 100 m (custom span options available)
Operating Temperature -40°C to +70°C
Standards Complies with IEC 60794, ITU-T G.652D/G.657, RoHS

ASU Self-Supporting FRP Strength Tube 7.0/8.0 HDPE Drop Cable 0

Why Choose Ebocom ASU Mini ADSS Cable?

  • Flexible Customization: Diameter, fiber count, and jacket color all available to match your project.

  • Proven Quality: Produced in ISO-certified facilities with strict quality control and full-length testing.

  • Fast Delivery: High daily production capacity ensures quick lead times for urgent orders.

  • Global Export Experience: Shipped to telecom operators and contractors worldwide for FTTH and power line projects.
