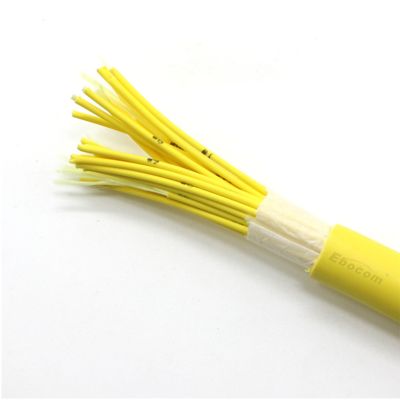

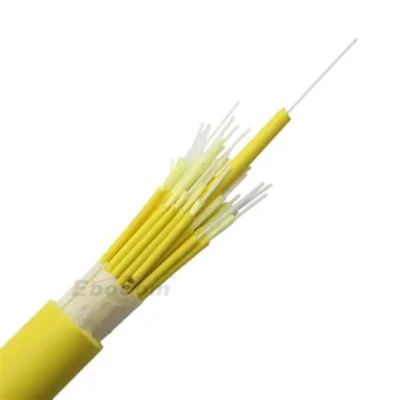

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket

  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
  • GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket
Lugar de origen PORCELANA
Nombre de la marca Ebocom
Certificación ISO
Número de modelo GJBFJH
Cantidad de orden mínima 2000m
Precio 0.1 USD per Meter
Detalles de empaquetado Tambor de madera contrachapada o personalizado
Tiempo de entrega 3-10 días
Condiciones de pago L/C, T/T
Capacidad de la fuente 50 km por día

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es?:0086 18588475571

El Wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Centro 2 a 48 fibras Miembro de la fuerza Los demás tejidos de poliéster
Vaina Lszh Temperatura -20 a 70°C
certificaciones ISO Fibra de amortiguación Fibra de almacenador intermediario apretado
Tipo de fibra Sm Color de fibra Consulte Cromatograma
Resaltar

Indoor breakout fiber optic cable

,

Single mode LSZH fiber cable

,

4-48 core fiber optic cable
Deja un mensaje
Descripción de producto

The GJBFJH indoor breakout fiber optic cable is specially designed for indoor fiber distribution and patching systems that require flexibility, safety, and reliability.
This cable adopts a central FRP (Fiber Reinforced Plastic) strength member, surrounded by multiple 2.0mm sub-units, each consisting of a tight-buffered fiber, aramid or polyester yarns, and an LSZH (Low Smoke Zero Halogen) outer jacket.
It ensures easy termination, excellent mechanical strength, and low signal loss, making it ideal for data centers, FTTH networks, office buildings, and telecom rooms.

Key Features

  • Stable performance: High-quality single-mode G.657A1 or G.652D fiber ensures low attenuation and stable transmission.

  • Reliable strength: Central FRP member and aramid yarn reinforcement provide excellent tensile and crush resistance.

  • Fire safety: LSZH sheath offers flame retardant, low smoke, and halogen-free protection for indoor environments.

  • Easy handling: Each sub-unit can be directly connected, terminated, or re-routed, simplifying installation and maintenance.

  • Wide applications: Suitable for LAN networks, distribution frames, FTTH wiring, and indoor backbone cabling.

Applications

  • Data centers and telecom rooms

  • Building backbone cabling

  • FTTH and FTTB systems

  • Indoor distribution and patching networks

  • Optical communication equipment interconnection

Technical Parameters

Item Description
Cable Type GJBFJH Indoor Breakout Fiber Optic Cable
Fiber Type Single Mode (G.657A1 / G.652D)
Fiber Count 2–48 cores (customizable)
Sub-unit Structure 2.0mm tight-buffered fiber + Aramid/Polyester yarns + LSZH jacket
Central Strength Member FRP (Fiber Reinforced Plastic)
Outer Jacket Material LSZH (Low Smoke Zero Halogen)
Outer Diameter 7.0–12.0mm (depending on fiber count)
Tensile Strength ≥ 1500N
Crush Resistance ≥ 1000N/100mm
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C ~ +70°C
Color Options Yellow (SM)

GJBFJH Indoor Breakout Fiber Optic Cable 4~48 Core Single Mode LSZH Jacket 0
