GJBFJH 4~48 Core OM2 Multimode Indoor Breakout Fiber Optic Cable LSZH Jacket
| Lugar de origen | PORCELANA |
|---|---|
| Nombre de la marca | Ebocom |
| Certificación | ISO |
| Número de modelo | GJBFJH |
| Cantidad de orden mínima | 2000m |
| Precio | 0.1 USD per Meter |
| Detalles de empaquetado | Tambor de madera contrachapada o personalizado |
| Tiempo de entrega | 3-10 días |
| Condiciones de pago | L/C, T/T |
| Capacidad de la fuente | 50 km por día |
Póngase en contacto conmigo para muestras y cupones gratis.
¿Qué es?:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Centro | 2 a 48 fibras | Miembro de la fuerza | Los demás tejidos de poliéster |
|---|---|---|---|
| Vaina | Lszh | Temperatura | -20 a 70°C |
| certificaciones | ISO | Fibra de amortiguación | Fibra de almacenador intermediario apretado |
| Tipo de fibra | Fibra multi del modo | Color de fibra | Consulte Cromatograma |
| Resaltar | OM2 multimode fiber optic cable,indoor breakout fiber cable LSZH,4-48 core fiber optic cable |
||
Descripción de producto

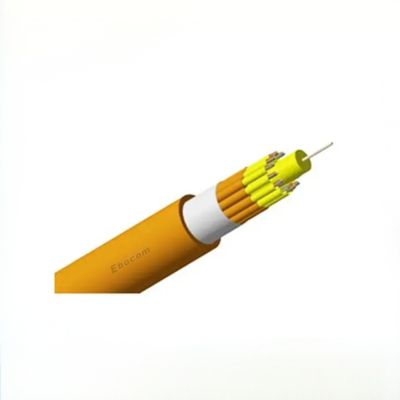

The GJBFJH OM2 indoor breakout fiber optic cable is a durable and flexible solution designed for indoor distribution, interconnection, and patching applications.
It features a central FRP strength member and several 2.0mm sub-units, each containing a tight-buffered OM2 multimode fiber, surrounded by polyester or aramid yarns and an LSZH jacket.
This structure provides easy termination, strong mechanical protection, and excellent fire safety, making it perfect for data centers, local area networks (LAN), and indoor wiring systems.
Main Features
-
High-speed performance: OM2 multimode fibers support up to 10Gbps transmission over 550 meters, ensuring stable and efficient data transfer.
-
Safe for indoor environments: LSZH outer sheath produces minimal smoke and no halogen gases during fire incidents.
-
Strong mechanical protection: Central FRP rod enhances tensile strength and cable stability during installation.
-
Simple deployment: Each sub-unit can be independently stripped and connected — no breakout kit required.
-
Versatile use: Ideal for enterprise networks, backbone cabling, patch panels, and short-distance communication links.
Applications
-
Data centers and control rooms
-
Building backbone and horizontal cabling
-
Indoor fiber distribution and patching systems
-
LAN and server room connections
-
Short-distance high-speed transmission networks
Technical Specifications
| Item | Description |
|---|---|
| Cable Type | GJBFJH Indoor Breakout Fiber Optic Cable |
| Fiber Type | OM2 Multimode (50/125μm) |
| Fiber Count | 2–48 cores (customized) |
| Sub-unit Construction | 2.0mm tight-buffered fiber + Polyester/Aramid yarns + LSZH jacket |
| Central Strength Member | FRP (Fiber Reinforced Plastic) |
| Outer Sheath Material | LSZH (Low Smoke Zero Halogen) |
| Outer Diameter | 7.0–12.5mm (depends on fiber count) |
| Attenuation | ≤ 3.5dB/km @850nm, ≤ 1.5dB/km @1300nm |
| Tensile Strength | ≥ 1000N |
| Crush Resistance | ≥ 1000N/100mm |
| Operating Temperature | -20°C ~ +70°C |
| Color Options | Orange (OM2 standard) or customized per project requirement |
Advantages of Choosing Ebocom
-
12+ years manufacturing experience in indoor and outdoor fiber optic cables
-
In-house testing lab for performance and materials verification
-
OEM/ODM customization for fiber type, color, jacket, and printing
-
Fast delivery with global logistics support and stable quality supply
