GYTS Outdoor Fiber Optic Cable 2~144 Core Steel Tape Armored Cable for Duct or Aerial Installation
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | Ebocom |
| Certificación | ISO |
| Número de modelo | Gyts |
| Cantidad de orden mínima | 1 km |
| Precio | USD 0.09~0.45, Meter |
| Detalles de empaquetado | Tambor de madera contrachapada, rollo de bolsa de tejido o personalizado |
| Tiempo de entrega | 5-10 días |
| Condiciones de pago | T/T, L/C, Western Union |
| Capacidad de la fuente | 100 km por día |
Póngase en contacto conmigo para muestras y cupones gratis.
¿Qué es?:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Material de la vaina | HDPE, MDPE, LDPE | Uso de cable | Aéreo/conducto |
|---|---|---|---|
| Estructura de cables | Tubo suelto varado | Capa de blindaje | Cintas de acero recubiertas de plástico o de aluminio |
| Número de fibra | 2-288 | Longitud por rollo | 2km/3km/4km |
| Reforzarse | FRP/alambre de acero | Modo | Modo único |
| Fábrica | Sí | ||
| Resaltar | steel tape armored fiber optic cable,outdoor fiber optic cable for duct installation,144 core aerial fiber optic cable |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
| Laying Mode |
|---|
Descripción de producto
Product Description

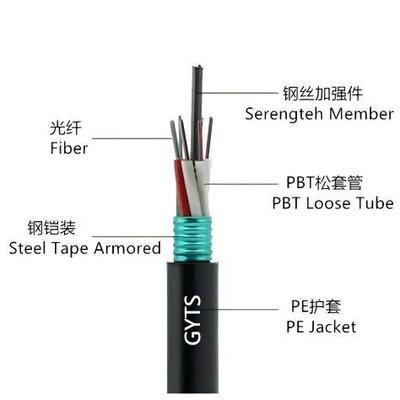

The GYTS outdoor fiber optic cable is a robust communication cable designed for long-distance transmission, outdoor duct, and direct burial applications. It adopts a multi-loose tube stranded structure, where color-coded fibers are placed in PBT tubes filled with water-blocking gel to ensure long-term stability and moisture resistance.
The loose tubes and fillers are stranded around a central strength member, forming a compact and round cable core. A corrugated steel tape armor (PSP) provides excellent mechanical protection against impact, rodent damage, and external compression. The PE outer sheath ensures strong environmental resistance, making it suitable for telecom networks, backbone connections, and access systems.
Key Features
-
Reliable Protection: Corrugated steel tape armor provides superior mechanical strength and anti-rodent performance.
-
Moisture Resistance: Water-blocking materials prevent longitudinal water penetration, ensuring cable durability.
-
High Fiber Capacity: Supports a wide range of fiber counts — from 2 to 144 cores — ideal for backbone networks.
-
Versatile Installation: Suitable for duct, underground, or direct burial applications.
-
Compatibility: Available with single-mode (G.652D, G.657A1/A2) or multi-mode (OM1, OM2, OM3, OM4) optical fibers.
-
Excellent Environmental Performance: Stable operation in a wide temperature range from -40°C to +70°C.
Technical Specifications
| Parameter | Description |
|---|---|
| Cable Type | GYTS – Stranded Loose Tube Steel Tape Armored Cable |
| Fiber Count | 2–144 cores |
| Fiber Type | Single-mode (G.652D/G.657A1/A2), Multi-mode (OM2/OM3/OM4) |
| Strength Member | Central steel wire |
| Loose Tube Material | PBT, filled with water-blocking gel |
| Armoring | Corrugated steel tape (PSP) |
| Outer Sheath | Black PE (UV-resistant, weatherproof) |
| Operating Temperature | -40°C ~ +70°C |
| Installation Method | Duct / Underground / Direct burial |
| Standards | IEC 60794, ITU-T G.652, YD/T 901, ISO9001 certified production |
Applications
-
Long-distance and metropolitan area network (MAN) communication systems
-
FTTH and FTTx projects
-
Backbone transmission lines for telecom, railway, and power grid networks
-
Data centers and outdoor security systems
