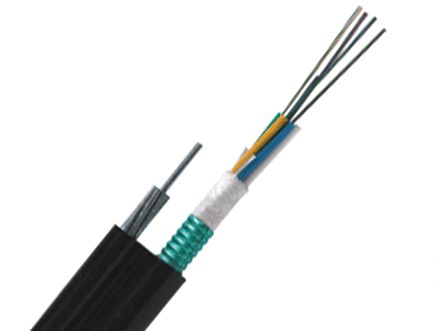

48 Core GYTC8S Self-Supporting Fiber Optic Cable for Aerial Outdoor Network Installation
| Lugar de origen | Porcelana |
|---|---|
| Nombre de la marca | Ebocom |
| Certificación | ISO |
| Número de modelo | Gytc8s |
| Cantidad de orden mínima | 2000m |
| Precio | USD 0.05~0.1, Meter |
| Detalles de empaquetado | Tambor de madera contrachapada |
| Tiempo de entrega | 10-15 días |
| Condiciones de pago | T/T, L/C, Western Union, Moneygram |
| Capacidad de la fuente | 80 Km por día |
Póngase en contacto conmigo para muestras y cupones gratis.
¿Qué es?:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Nombre del modelo | Gytc8s | Temperatura de instalación | -30°C a +60°C |
|---|---|---|---|
| Embalaje | tambor 2-4km/wooden | Vida de la vida | 25-30 años |
| Instalación | Autoportante Aerial | Rango de fibra | 2-144 núcleos |
| Material de la chaqueta | Polietileno (PE) | Blindado | Cinta de acero acorazada |
| Fábrica | Sí | Modelo de fibra | G652D G657A1 G657A2 |
| Resaltar | 48 core self-supporting fiber optic cable,aerial outdoor fiber optic cable,GYTC8S outdoor network cable |
||
Puede marcar los productos que necesita y comunicarse con nosotros en el tablero de mensajes.
| Loose Tube |
|---|
Descripción de producto
Product Description:
The 48-core GYTC8S optical cable is a self-supporting outdoor fiber cable specifically designed for aerial installations in telecom, CCTV, and broadband projects.

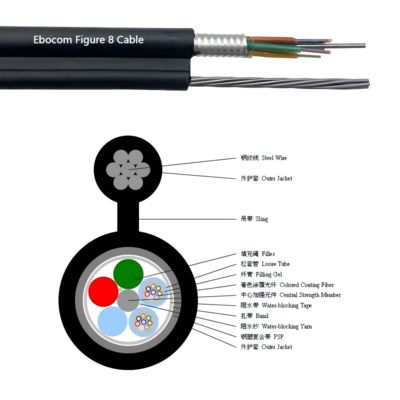

It combines a central loose-tube optical core with corrugated steel tape armor and a built-in messenger wire, forming the classic figure-8 (8-shape) structure. This design provides superior mechanical strength, weather resistance, and installation convenience for long-distance spans.
The 48 fibers are housed in multiple color-coded loose tubes, each filled with water-blocking gel for maximum protection against moisture. The corrugated steel tape offers excellent compression and rodent resistance, while the PE outer sheath ensures durability under UV and temperature variations.
The messenger wire section — usually a galvanized steel strand — supports the cable’s weight during aerial deployment, eliminating the need for separate suspension hardware.
This cable is widely used in FTTH backbone lines, municipal projects, rural broadband networks, and industrial communication systems that require a reliable and cost-effective aerial solution.
Main Features:
48-core high-capacity design — Suitable for large-scale backbone or access networks.
Integrated messenger wire — Self-supporting and easy to install on poles.
Corrugated steel tape armor — Strong protection against mechanical impact and rodent bites.
Water-blocking system — Prevents longitudinal water penetration.
Excellent tensile strength — Ideal for aerial spans from 50m to 500m.
UV-resistant PE sheath — Long-lasting outdoor durability.
Customizable structure — Optional messenger wire types and sheath colors available.
Technical Specifications:
| Item | Description |
|---|---|
| Cable Type | GYTC8S Self-Supporting Outdoor Fiber Optic Cable |
| Fiber Count | 48 cores |
| Fiber Type | Single-mode (G.652D / G.657A1) or Multi-mode (OM3 / OM4 optional) |
| Cable Structure | Figure-8 design with integrated messenger wire |
| Messenger Wire | Galvanized steel wire or 7-strand steel cable |
| Armoring Layer | Corrugated steel tape |
| Sheath Material | Black PE |
| Installation Method | Aerial, self-supporting |
| Operation Temperature | -40°C ~ +70°C |
| Span Distance | Typically up to 200 meters |
| Moisture Protection | Water-blocking gel + PSP armor |
Applications:
Long-distance aerial transmission lines
FTTH and FTTB backbone network construction
CCTV and monitoring systems
Industrial communication networks
Rural and suburban telecom infrastructure
Ebocom Advantage:
As a leading optical cable manufacturer, Ebocom offers:
Professional production lines for both armored and non-armored 8-figure cables
12+ years of manufacturing experience and strict ISO quality control
Flexible OEM/ODM services — fiber count, sheath color, printing, and packaging customizable
Stable delivery capacity — up to 100 km/day production capability
Reliable performance and competitive prices trusted by clients worldwide
